FIBER

Design single-mode and multimode topologies with factory-tested assemblies, modular cassettes, and rapid logistics across every distribution layer.

  • Factory polarity mapping with QR-linked diagrams
  • 12F to 144F trunks with low-loss connectors
  • Bend-insensitive fibers for dense pathways
  • Hybrid fiber/power options for remote devices
Download BrochureRequest quote

Performance Series

Performance Series Stock Fiber Patch Cables

Factory as-built documentation accompanies every jumper so your crews can deploy high-density optical pathways without retesting in the field.

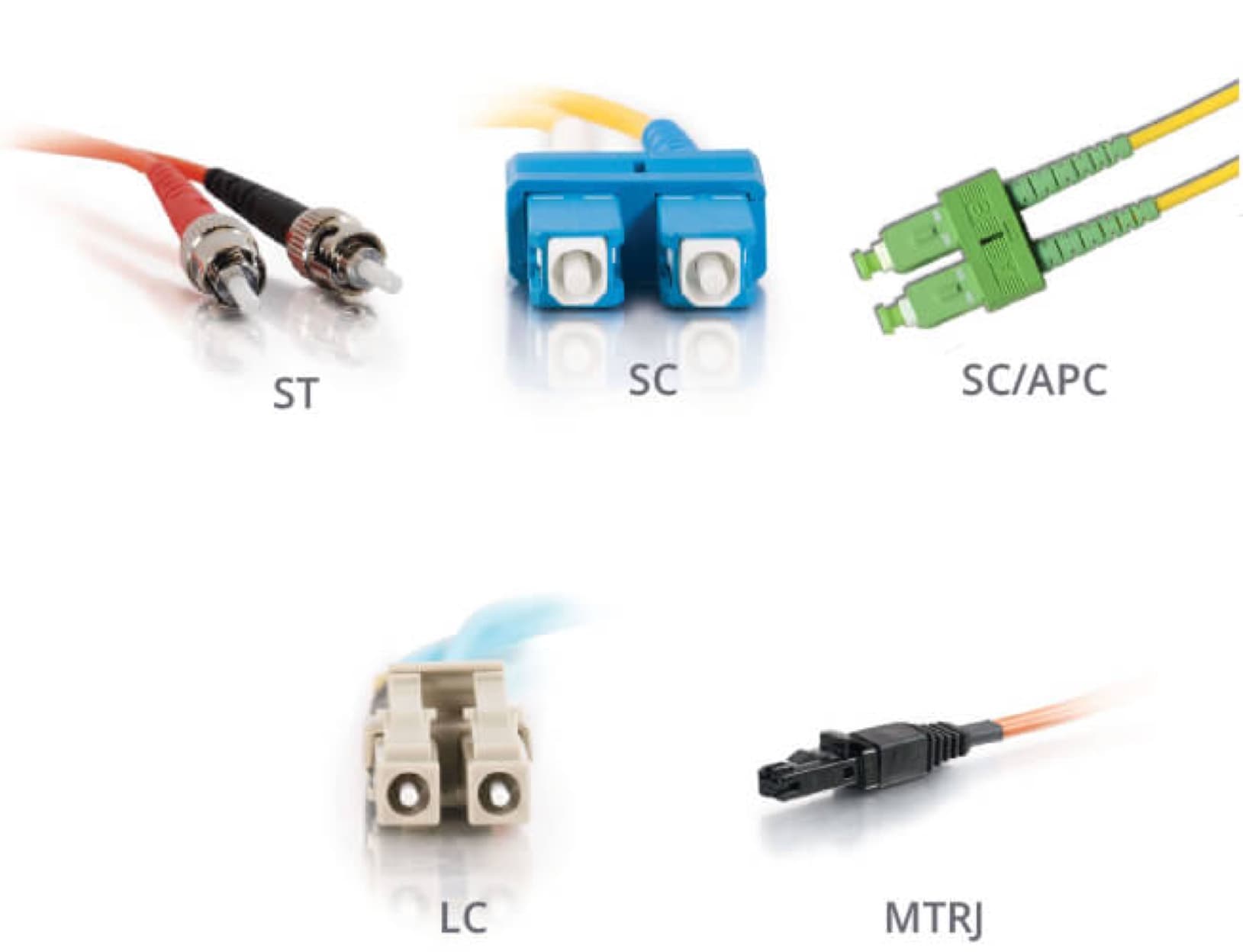

Performance Series stock fiber patch cables
  • Corning ClearCurve optical fiber
  • Factory terminated for superior performance
  • Insertion loss and reflectance tested on all connectors with results included

Jackets

2.0 mm riser

Connectors

ST, SC, SC/APC, LC

Polishes

PC (Physical Contact), UPC (Ultra Physical Contact), APC (Angled Physical Contact)

Fiber Types

Multimode 62.5um (OM1), 50um (OM2, OM3, OM4, OM5), Singlemode 9um (OS2), Mode Conditioning Patch Cables

Stock Lengths

1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 meters

Performance Series Custom and Specialty Fiber

Custom and Specialty Fiber Assemblies

Configure low-loss optical builds that arrive documented, serialized, and ready for rapid installation across data center, campus, or broadcast environments.

  • Corning ClearCurve optical fiber
  • Factory terminated for superior performance
  • Insertion loss and reflectance tested on all connectors with results included

Jackets

1.6, 2.0, 3.0 mm riser, plenum, LSZH

Connectors

ST, FC, FC/APC, SC, SC/APC, LC, LC/APC, MTRJ, E2000, MPO/MTP

Polishes

PC (Physical Contact), UPC (Ultra Physical Contact), APC (Angled Physical Contact)

Fiber Types

Multimode 62.5um (OM1), 50um (OM2, OM3, OM4, OM5), Singlemode 9um (OS2), Mode Conditioning Patch Cables

Fiber Counts

1-144 fibers

Boots

Standard or ultra-short bendable boots for limited clearance

Colored Zip Cord

Orange, Aqua, Yellow, Blue, White, Green, Red, Pink, Gray, Rose, Purple, Black, Brown

  • Corning Gold assemblies eligible for Corning Extended Warranty Program with 25-year coverage when installed by certified partners

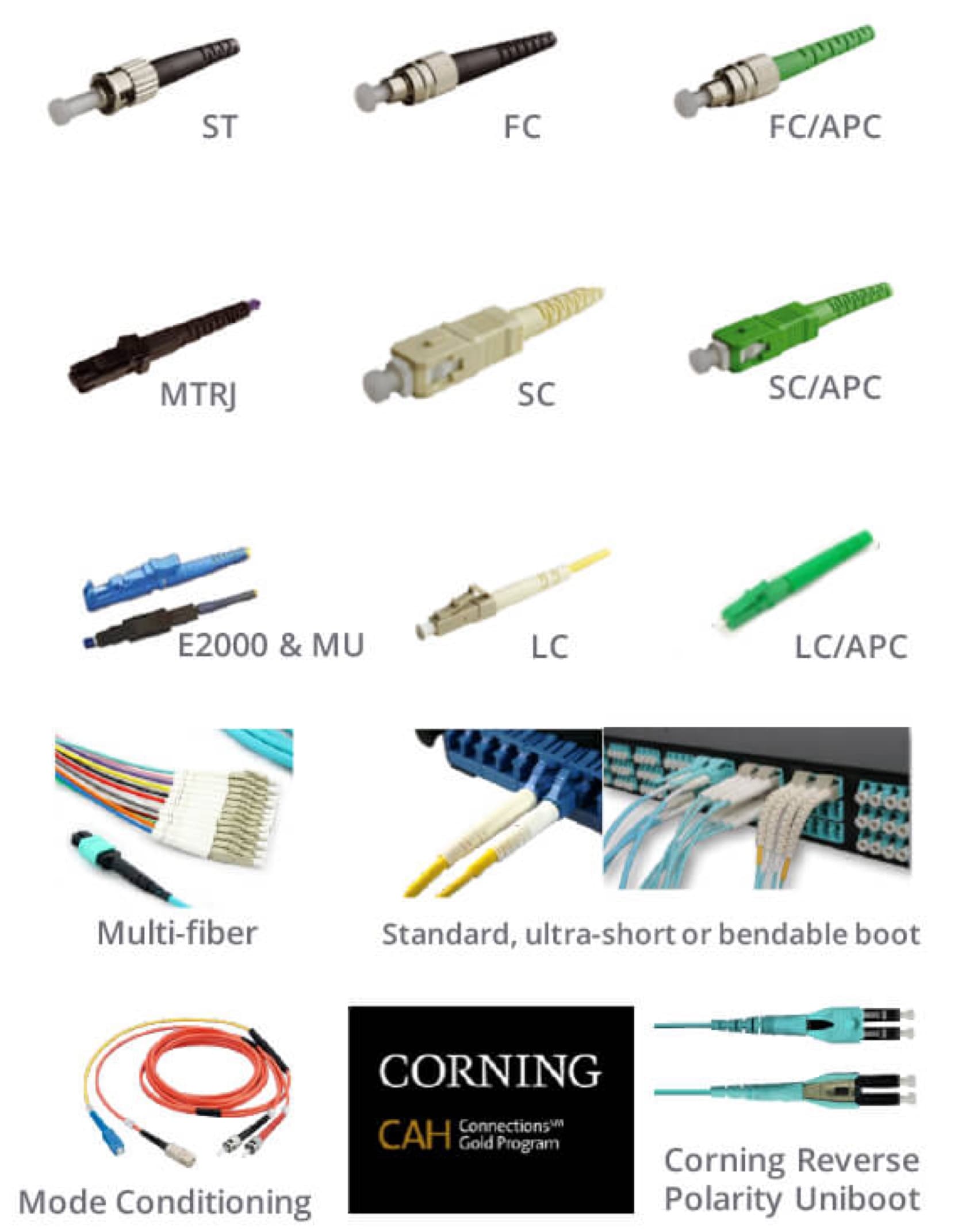

Custom specialty fiber assemblies staged for deployment

High-Density MPO/MTP Fiber Solutions

What is MPO/MTP?

MPO is a Multifiber Push-On connector defined by IEC-61754-7 and TIA-604-5-D, also known as FOCIS 5. When this factory-terminated 12 or 24 fiber connector is combined with a small diameter ribbon or round cable, extreme density and ease of deployment become the new normal.

The MPO connector can be male or female. They are visibly recognizable by the inclusion of alignment pins (male) or lack thereof (female).

MTP is a type of MPO connector patented and made by US Conec that includes mechanical and performance enhancements, but remain 100% compatible with each other.

General Rules for Polarity and Gender

  1. 1.Use the same type of patch cable in your network closets and data centers to eliminate polarity confusion. For example, the most common for LC-LC duplex is a Type A to B crossover (maps Tx to Rx ports).
  2. 2.MPO/MTP connectors should always mate Male to Female for the lowest loss.
  3. 3.Active equipment is always pinned Male, so MPO/MTP patch cables should always be Female to Female to avoid damage.
  4. 4.Cassettes are typically made with Male MPO/MTP connectors.
  5. 5.Trunk cables between cassettes should be Female to Female and use Polarity C. This keeps the cassettes the same on both ends and allows the use of standard patch cables to your equipment.
  6. 6.NOTE: There can be exceptions to these rules depending on your current infrastructure and future initiatives, so we encourage you to contact one of our engineers to confirm your exact installation requirements.
Call or email us today

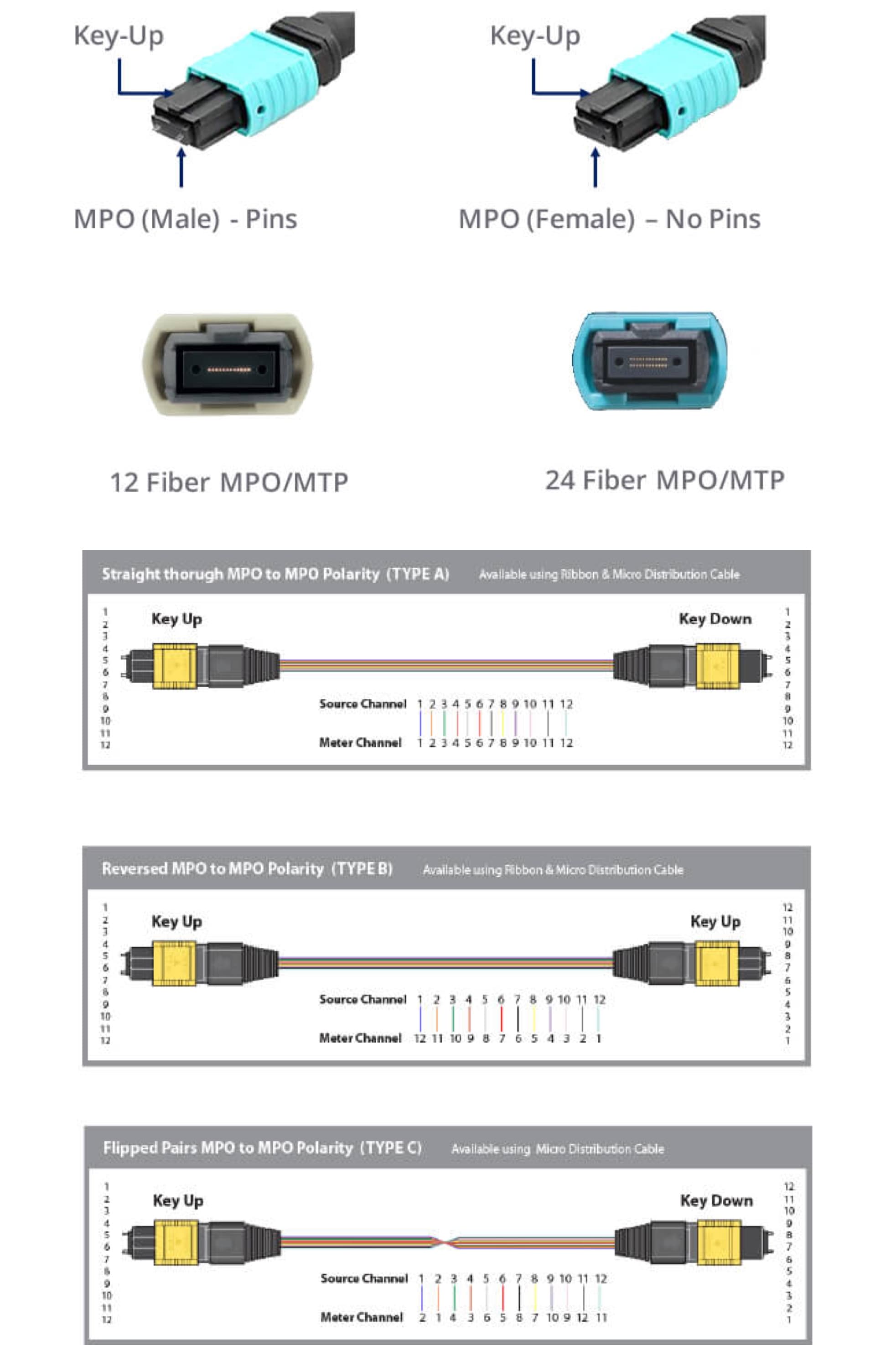

Illustration showing MPO and MTP connector styles and polarity options

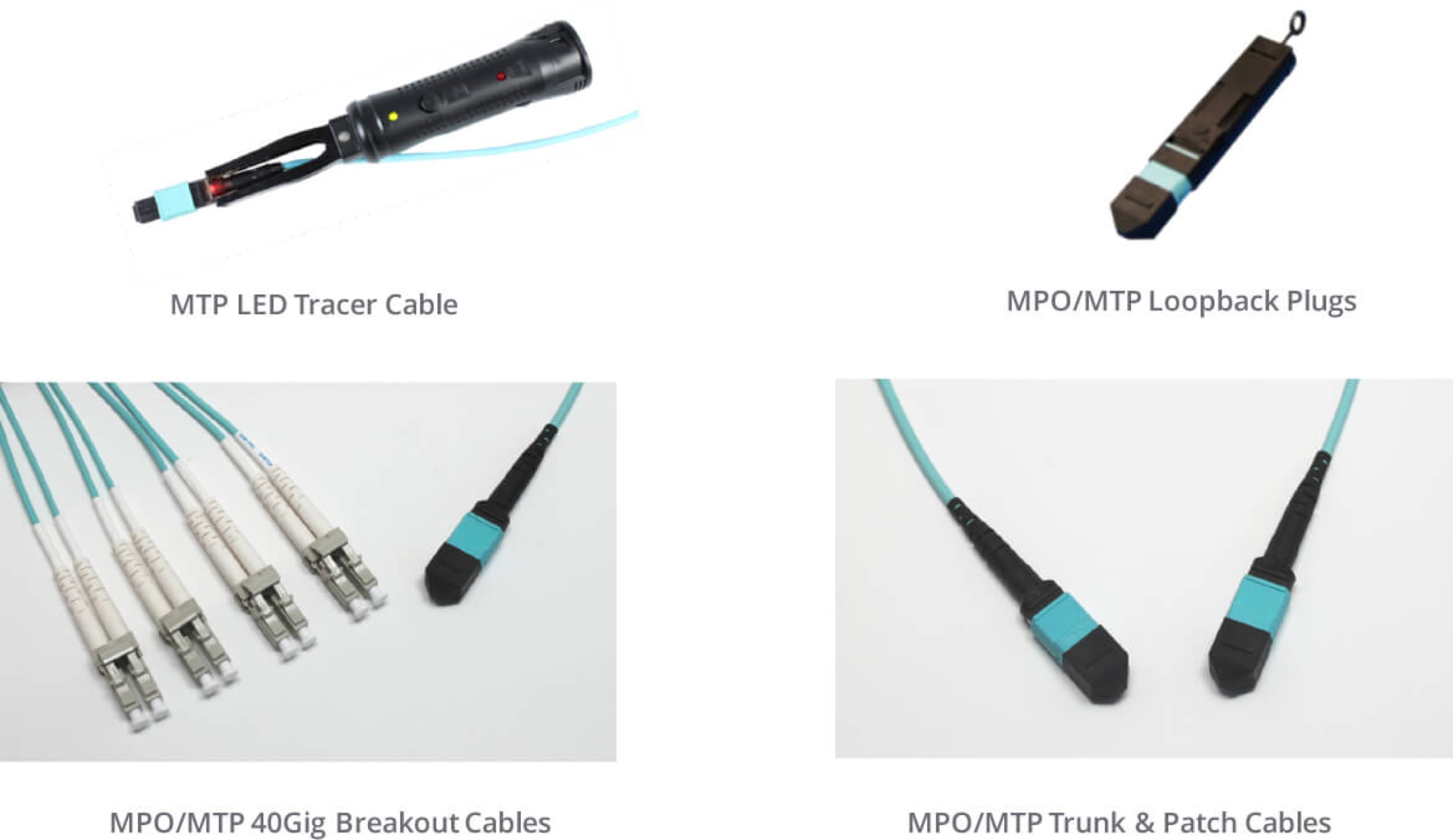

Expanded view of additional MPO/MTP fiber cable options

Build-out attenuators and adapters ready for dense fiber plants.

Build-Out Style Attenuators

  • ST, FC, FC/APC, SC, SC/APC, LC (Male to Female Build-Out Style)
  • Singlemode
  • 1-20 dB Fixed Attenuation Values
  • Variable attenuators also available

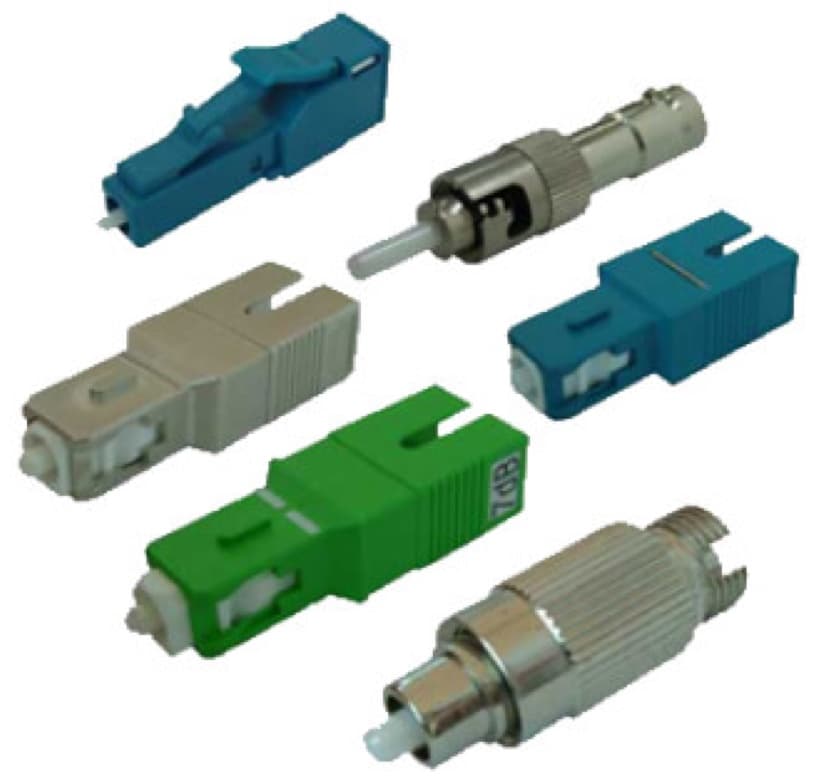

Assortment of build-out style fiber attenuators on a white surface

Fiber Adapters/Couplers

  • ST, SC, LC, MPO/MTP
  • Simplex and Duplex
  • Zirconia/polymer for Singlemode or Multimode, 10Gig compliant
  • Hybrid adapters also available

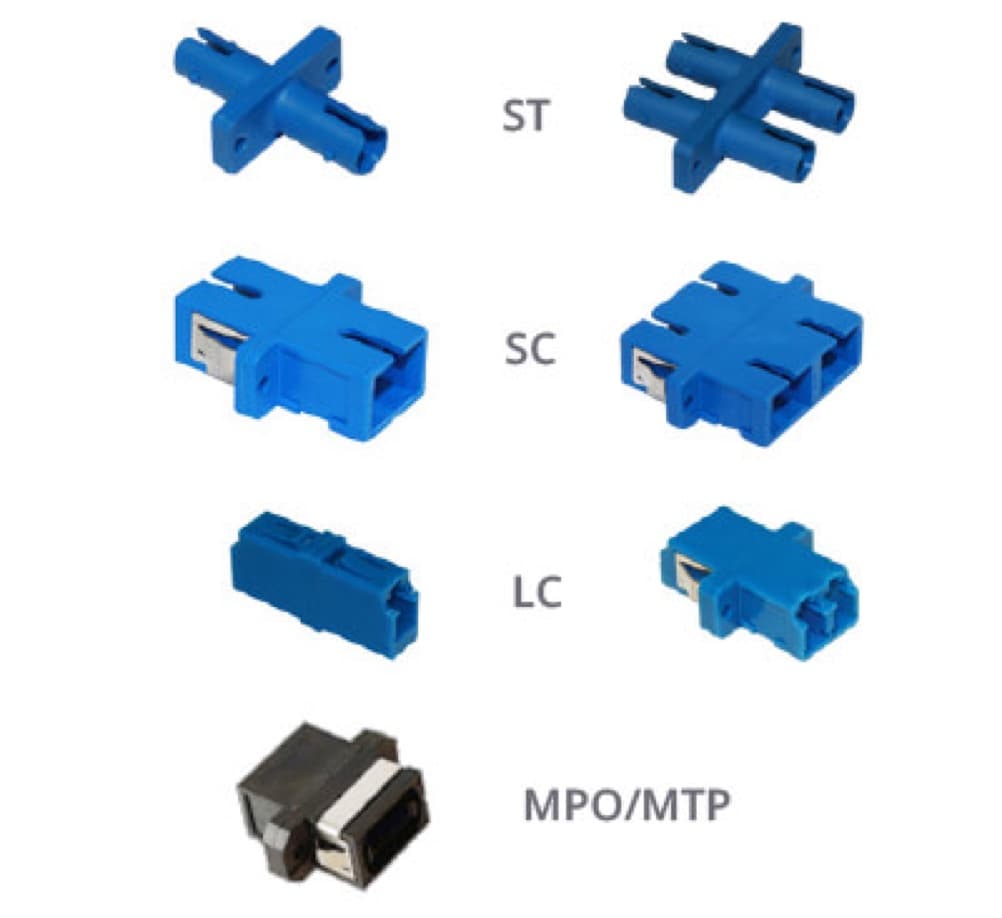

Various fiber adapters and couplers organized by type

Reference

Table of distance by speed and fiber type

Compare reach across multimode and singlemode fiber plants to ensure your design meets performance budgets from 1G to 100G.

1000Base-SX

Wavelength
850
OM1 (Orange) 62.5um
220m
OM2 (Orange) 50um
550m
OM3 (Aqua) 50um
550m
OM4 (Aqua) 50um
550m
OS1 (Yellow) 9um
-

1000Base-LX

Wavelength
1300
OM1 (Orange) 62.5um
550m*
OM2 (Orange) 50um
550m*
OM3 (Aqua) 50um
550m*
OM4 (Aqua) 50um
550m*
OS1 (Yellow) 9um
10km

10GBase-SR

Wavelength
850
OM1 (Orange) 62.5um
32m
OM2 (Orange) 50um
82m
OM3 (Aqua) 50um
300m
OM4 (Aqua) 50um
400m
OS1 (Yellow) 9um
-

10GBase-LR

Wavelength
1310
OM1 (Orange) 62.5um
300m*
OM2 (Orange) 50um
300m*
OM3 (Aqua) 50um
300m*
OM4 (Aqua) 50um
300m*
OS1 (Yellow) 9um
10km

40GBase-SR4

Wavelength
850
OM1 (Orange) 62.5um
-
OM2 (Orange) 50um
-
OM3 (Aqua) 50um
100m
OM4 (Aqua) 50um
150m
OS1 (Yellow) 9um
-

40GBase-LR4

Wavelength
1310
OM1 (Orange) 62.5um
-
OM2 (Orange) 50um
-
OM3 (Aqua) 50um
-
OM4 (Aqua) 50um
-
OS1 (Yellow) 9um
10km

100GBase-SR4

Wavelength
850
OM1 (Orange) 62.5um
-
OM2 (Orange) 50um
-
OM3 (Aqua) 50um
100m
OM4 (Aqua) 50um
150m
OS1 (Yellow) 9um
-

100GBase-LR4

Wavelength
1310
OM1 (Orange) 62.5um
-
OM2 (Orange) 50um
-
OM3 (Aqua) 50um
-
OM4 (Aqua) 50um
-
OS1 (Yellow) 9um
10km
* Requires use of mode-conditioning patch cable at each end of the link.
